Custom Immersion Heaters

Applications

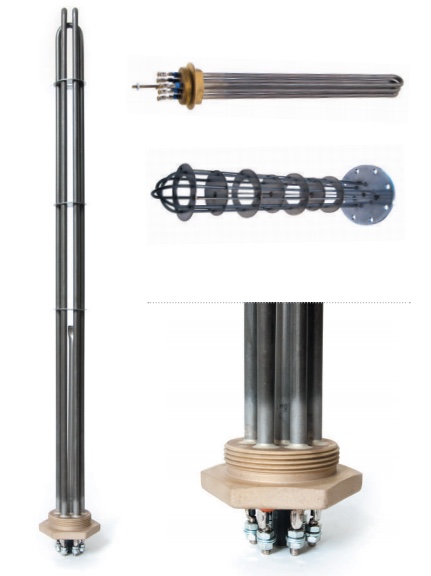

Immersion heaters consist of tubular heating elements, which are silver soldered or TIG welded into a threaded brass, steel or stainless steel screw fitting. Immersion heaters or tank heaters as they are sometimes referred to, can then be inserted into a threaded opening in a tank wall.

Immersion heaters are used to heat fluids such as oil, water, chemical solutions, mild acids, electroplating and salt solutions etc. BJC custom immersion heaters are manufactured in a wide range of sheath materials to suit any medium.

Sheath materials include but are not limited to: Incoloy 800, Stainless 304, 309S and T316. Sheath diameters are 6.3mm, 8mm and 10.7mm.
