Immersion Heaters: BJC Range


Applications

All listed elements on this page are
fitted with 2” BSP brass bosses, and
are manufactured using Ø8mm 309S
Grade Stainless Steel. We are able to
manufacture these elements in other
materials if required but they would be
made to order. All elements are fitted
with a thermostat pocket, and are for
use in water type applications. They are
designed to be fitted horizontally.

Three Phase Heater Wiring diagrams for
standard and alternative connections:

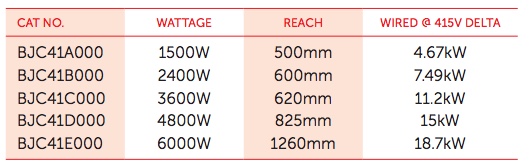

BJC41 Series: 235V Elements with 31kW/m2 Sheath Loading

Low Watt density elements for use in applications where sensitive solutions need heating or elements may be subjected to a build up of a solution on the sheath. These elements are suited for 235V single phase 415V/235V 3 phase with either tied or floating neutral connection.

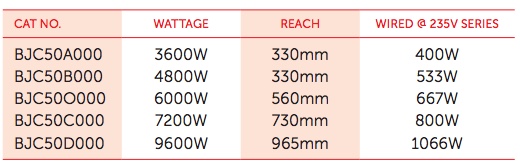

BJC50 Series: 235V Elements with 77.5kW/m2 Sheath Loading

Medium Watt density elements for use in water heating type applications. Suited to 235V single phase or 415V/235V 3 phase connection using either tied or floating neutral.

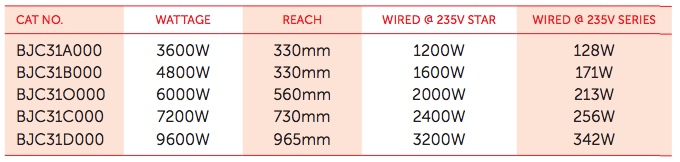

BJC31 Series: 415V Elements with 77.5kW/m2 Sheath Loading

Medium Watt density elements for use in water type applications. Suited to 415V single phase or three wire 3 phase 415V (Delta) connection.

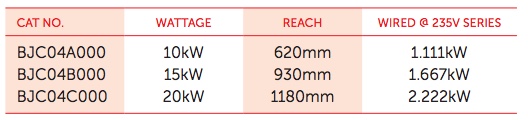

BJC04-0 Series: 235V Elements with 116kW/m2 Sheath Loading

High Watt loading series for use in applications where the space is limited. Suited to 235V single phase or 415V/235V 3 phase connection using either tied or floating neutral.

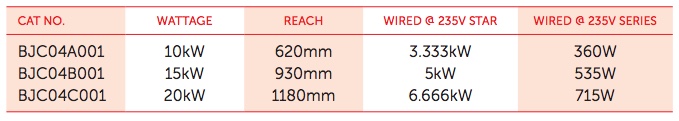

BJC04-1 Series: 415V Elements with 116kW/m2 Sheath Loading

High Watt loading series for use in applications where space is limited. Suited to 415V single phase or three wire 3 phase 415V (Delta) Connection.

Contact us today with your enquiry and one of our team will be in touch.


Contact us today with your enquiry and one of our team will be in touch.

< Back to Products

All elements are designed and manufactured to comply with the requirements of AS/NZS 3100. This range of elements are suitable for use in heating units manufactured to comply with the requirements of AS/NZS 1668.1. Contact your BJC agent for special wattages, voltages or sizes.
